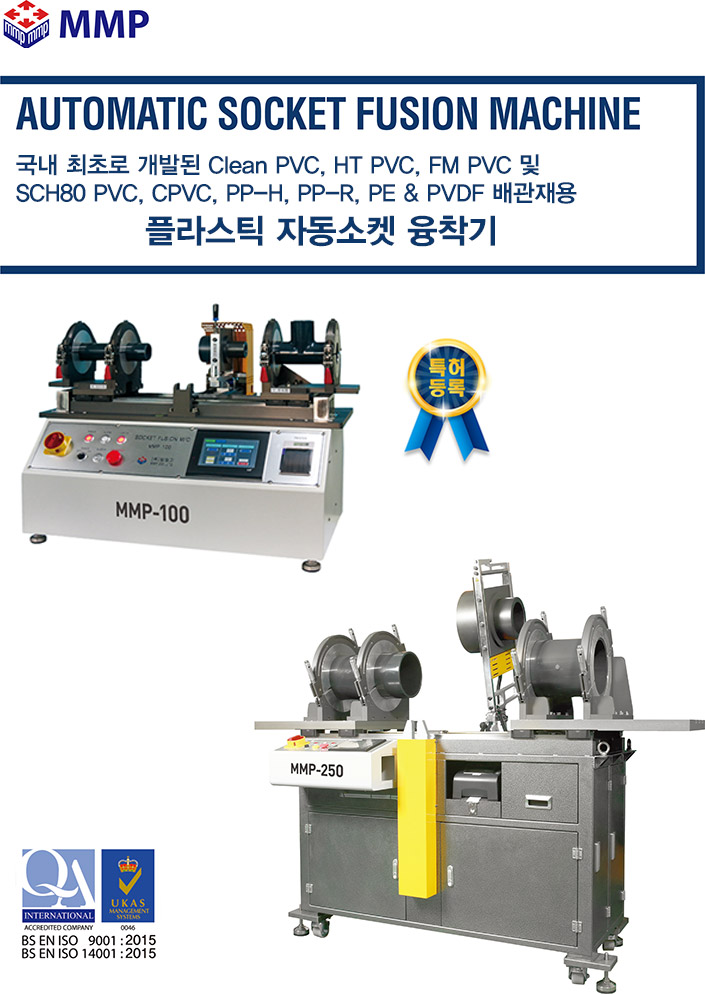

Automatic Socket Fusion Machine(MMP-100)

카탈로그 DOWNLOAD
Catalog

자동소켓융착기

Automatic Socket Fusion Machine
국내 최초로 개발된 Clean, HT, FM PVC 및 SCH80 PVC, CPVC, PP, PE & PVDF 배관재용 플라스틱 자동소켓 융착기

장비의 제원(Specification)
No. Desctiption Specification
MMP-100 MMP-250
1 Overall Size 842(W)*695(H)*632.5(D) 2050(W)*1881(H)*1300(D)
2 Weldable Size 16A ~ 100A 100A ~ 250A
3 Printer Label & Thermal Label
4 Monitor Color Touch Screen Color Touch Screen
5 Temperature Max. 300°C Max. 300°C
6 Power Consumption 1 Phase AC220V, 50/60Hz, 2.5Kw 1 Phase AC220V, 50/60Hz, 6Kw
7 Weight(Fusion M/C) 90kg 800kg
8 Weight(Accessories) 100kg 170kg
9 Accessories Flange Liner, Heater Face, Liners Flange Liner, Heater Face, Liners
